560-97 Series

SWR Autotesters

560-97 Series
This product has been discontinued
Overview

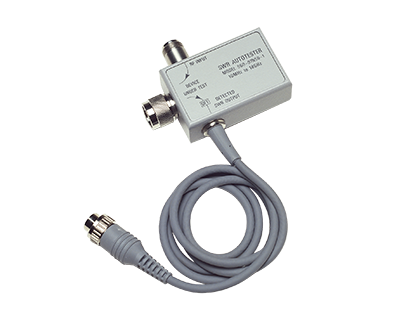

The 560-97 Series SWR Autotesters integrate a high directivity bridge, a detector, a low reflection test port, and a precision reference termination. The 560-97 Series units are broadband microwave measurement components that are used with the Model 56100A Scalar Network Analyzer and with Series 54100A Scalar Measurement System for making fixed-frequency and swept-frequency return loss (SWR) measurements. Return loss measurements are used over a wide range of radio and microwave frequencies to check the performance of systems, subsystems, and microwave components such as amplifiers, directional couplers, attenuators, filters, splitters, and terminations.

  • Up to 40 dB directivity
  • 10 MHz to 50 GHz range
  • Test port connectors to fit most measurement applications; avoids use of adapters
