Universal Test Fixtures 3680 Series

Universal Test Fixtures

3680 Series
This product has been discontinued
Overview

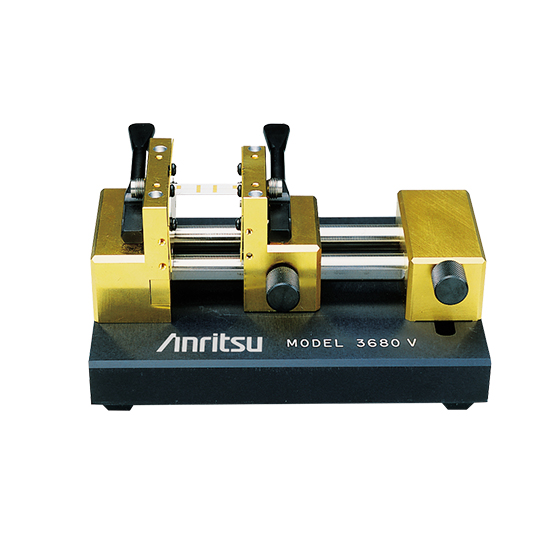

The 3680 series Universal Test Fixture (UTF) provides an accurate, and repeatable solution for measuring microstrip and Coplanar substrate devices. Input and output connections are made to the substrate device by two spring-loaded jaws that include coax-to-microstrip/Coplanar launchers. The jaws accommodate substrates from 0.13 to 1.9 mm in thickness. No center section is required. One jaw is movable in two dimensions to accommodate substrates up to 50 mm long (100 mm for 3680-20) and substrates with line offsets of up to 12.7 mm (25 mm for 3680-20). The 3680 series UTF includes three models: the 3680-20 covering DC to 20 GHz with APC-3.5 TM connectors, the 3680K covering DC to 40 GHz with Anritsu's K Connector®, and the 3680V covering DC to 60 GHz with Anritsu's V Connector®.

  • DC to 60 GHz coverage
  • Microstrip and coplanar measurement capability
  • Accommodates offset and right-angle test devices
  • Calibration/verification kits (optional)
  • Substrate measurement capability
Specifications

 Model

 Frequency Range (GHz)

 Return Loss (dB)

Repeatability (dB)

DC to
20 GHz

20 to
40 GHz

40 to
60 GHz

DC to
20 GHz

20 to
40 GHz

40 to
60 GHz

 Universal Test Fixture

 3680-20

 DC to 20

 >17





<±0.10





 3680K

 DC to 40

 >17

 >14



<±0.10

<±0.20



 3680V

 DC to 60

 >17

 >14

 >8

<±0.10

<±0.20

<±0.30

 Right-Angle Launcher

 36801K

 DC to 40

 >16

 >12



<±0.15

<±0.25



 36801V

 DC to 60

 >16

 >12

 >7

<±0.15

<±0.25

<±0.40

 MMIC Attachment

 36802

 DC to 60

 >12

 >8

 >6

<±0.20

<±0.40

<±0.60

 3680 Series Universal Text Fixture

Substrate types supportedMicrostip or coplanar waveguide
Overall size10 x 12.7 x 6.4 cm
Substrate length

0.5 cm min.
5 cm max.
[10 cm with 3680-10]

Maximum substrate widthNo limit
Substrate thickness

0.012 cm min.
0.19 cm max.

Maximum line offset

±1.2 cm
[±2.5 cm with 3680-20]

Input and output connector

3680-20: APC-3.5TM female
3680K: KConnectorR
3680V: V ConnectorR

 36802 MMIC Attachment

Substrate thickness0.0 cm, 0.038 cm, 0.064 cm
Minimum test substrate length1.5 mm
Maximum test substrate length1.17 cm with standard block
Maximum line offset±1.2 cm

 36801 Right Angle Launcher

Distance from in-line connector, axial

Minimum: 1 cm
Maximum: 4 cm

Distance from in-line connector, offset

Minimum: 0.0 cm
Maximum: 2 cm
