Waveguide-to-coaxial Adapters 35U/35C Series

Waveguide-to-coaxial Adapters

35U Series
This product has been discontinued
Overview

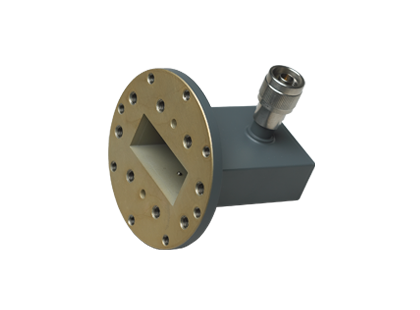

The 35U Series precision adapters transform standard waveguide to coaxial N and K Connector® interfaces, thus enabling convenient microwave coaxial measurements.

  • 3.3 GHz to 26.5 GHz frequency coverage
  • N connector compatibility
  • K Connector® compatibility with SMA and 3.5 mm
Specifications

Model

Frequency Range (GHz)

Connectors

W/G flage UG-(_) U

SWR

35UM40N

3.3 to 4.9

WR229 to N(m)
WG11A to N(m)

PDR40

1.08

35UM48N

3.9 to 5.8

WR187 to N(m)
WG12 to N(m)

CAR48, PAR48,
UAR48, DR48

1.08

35UM70N

5.8 to 8.2

WR137 to N(m)
WG14 to N(m)

CAR70, PAR70,
UAR70, PDR70

1.08

35UM84N

7.0 to 10

WR112 to N(m)
WG15 to N(m)

CBR84, UBR84,
PBR84, PDR84

1.08

35UM100N

8.2 to 12.4

WR90 to N(m)
WG16 to N(m)

CBR100, UBR100,
PBR100, PDR100

1.08

35UM120N

10 to 15

WR75 to N(m)
WG17 to N(m)

CBR120, UBR120,
PBR120, PDR120

1.08

35UM140N

12.4 to 18

WR62 to N(m)
WG18 to N(m)

CBR140, UBR140,
PBR140, PDR140

1.08

35UM220K

 17 to 26.5

 WR42 to K(m)
 WG20 to K(m)

CBR220, UBR220,
PBR220, PDR220

1.20

35UA112N

7.0 to 10

WR112 to N(m)
WG15 to N(m)

CPR112F,CPR112G,
UG-1358/U, UG-1359/U,
UG-1734/U, UG-1735/U,
UG-52B/U, UG-51/U,
UG-137B/U, UG-138/U

1.08

35UA187N

3.9 to 5.8

WR187 to N(m)
WG12 to N(m)

CPR187F,CPR187G,
UG-1352/U, UG-1353/U,
UG-1728/U, UG-1729/U,
UG-148/U, UG-149A/U

1.08

35UA137N

5.8 to 8.2

WR137 to N(m)
WG14 to N(m)

CPR137F,CPR137G,
UG-1356/U, UG-1357/U,
UG-1732/U, UG-1733/U,
UG-343B/U, UG-344/U,
UG-440B/U, UG-441/U

1.08

35UA90N

8.2 to 12.4

WR90 to N(m)
WG16 to N(m)

CPR90F,CPR90G,
UG-1360/U, UG-1361/U,
UG-1736/U, UG-1737/U,
UG-135B/U, UG-136/U

1.08

35UA62N

12.4 to 18

WR62 to N(m)
WG18 to N(m)

UG-541A/U, UG-419A/U
UG-1665/U, UG-1666/U

1.08

35UA42K

17 to 26.5

WR42 to K(m)
WG20 to K(m)

UG-596A/U, UG-595/U,
UG-597/U, UG-598A/U

1.08
