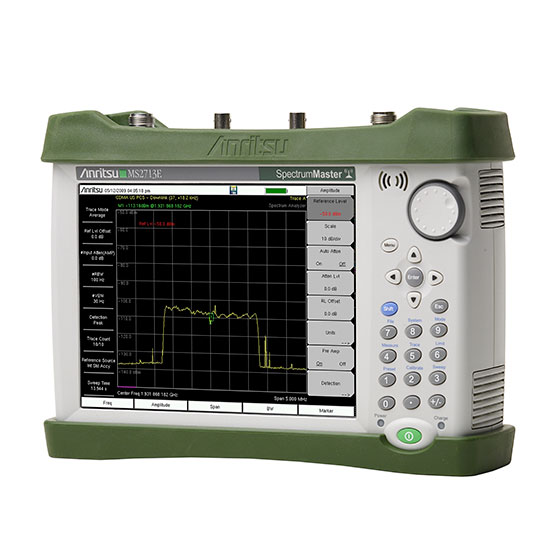

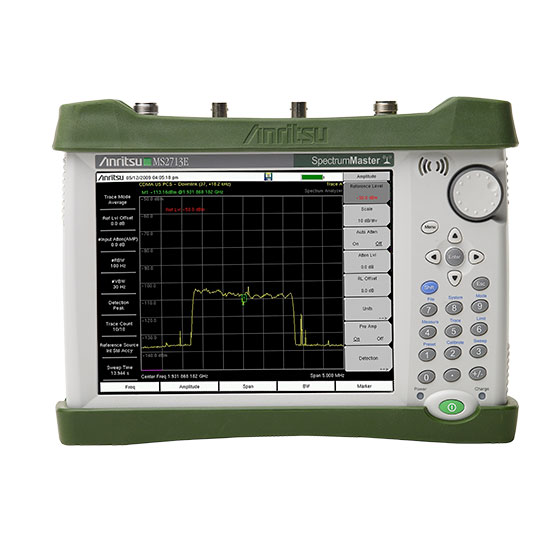

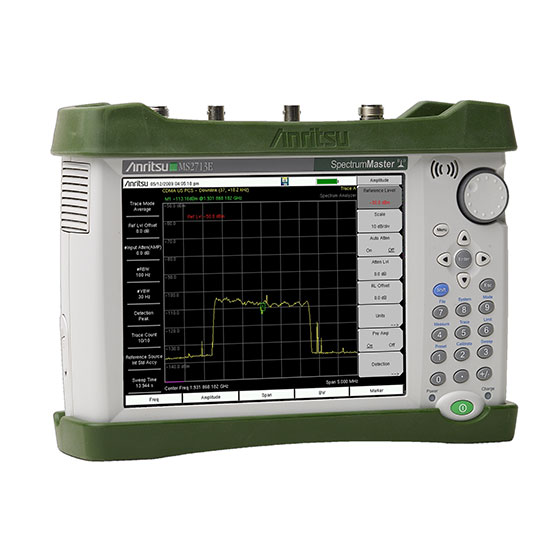

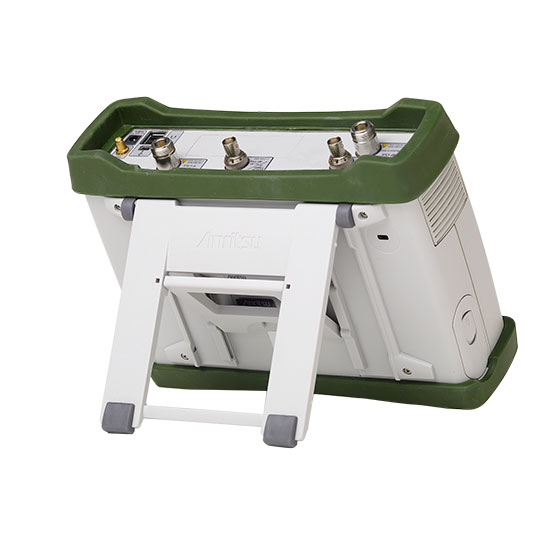

Spectrum Master Handheld Spectrum Analyzer MS2713E

Spectrum Master Handheld Spectrum Analyzer

MS2713E
This product has been discontinued
Overview

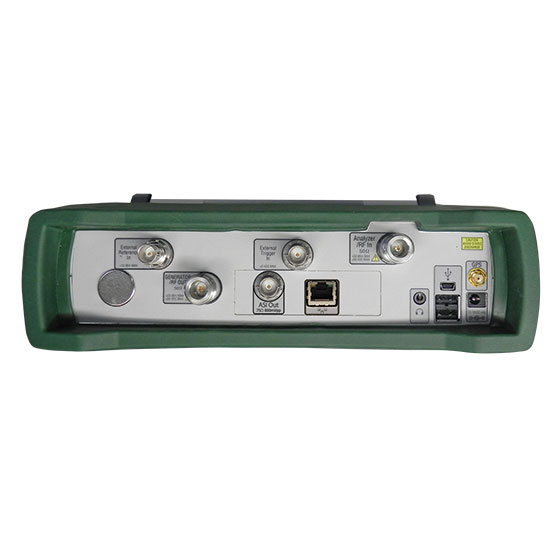

Compact Handheld Spectrum Analyzer

  • Spectrum Analyzer: 9 kHz – 6 GHz
  • Interference Analyzer with Interference Mapping
  • High Accuracy Power Meter, 2-port Transmission Measurements
  • Coverage Mapping, Channel Scanner, GPS, AM/FM/PM Analyzer
  • 3GPP, 3GPP2, WiMAX, signal analyzers
  • Tracking Generator: 500 kHz – 4 GHz
  • Digital TV ISDB-T, DVB-T/H analyzers
  • CPRI RF Measurements
  • Field-proven design: Three-hour battery life, rugged, compact, lightweight, daylight viewable display
  • Intuitive menu-driven touchscreen user interface
  • PIM Alert (a downloadable easyTest™ script)
  • Standard three-year warranty (battery one-year warranty)

Regulatory requirements are growing. You're under increasing pressure to cut costs. And improving system uptime is always a top priority. The MS2713E Spectrum Master helps you do all of this and more. Whether you are performing complex interference analysis or assessing signal quality, the MS2713E Spectrum Master delivers the ease of use, rich functionality, and best-in-class price/performance you've come to expect from Anritsu.

Designed to handle the most punishing field conditions, the MS2713E allows you to monitor, locate, identify, and analyze a broad range of cellular, 2G/3G/4G, land mobile radio, Wi-Fi, and broadcast signals. With a rich array of configuration options, the multifunctional MS2713E eliminates the need for you to learn and carry multiple instruments when locating and identifying signals over wide frequency ranges.

The CPRI RF option allows users to see the Uplink and Downlink signals via the optical CPRI link in a traditional RF Spectrum and Spectrogram view.

Spectrum Master Highlights

  • Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Spectral Emission Mask
  • Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID, Interference Mapping
  • 3GPP Signal Analyzers GSM/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSPA+, LTE/LTE-A, TD-LTE/LTE-A
  • 3GPP2 Signal Analyzers cdmaONE/CDMA2000 1X, CDMA2000 1xEV-DO
  • IEEE 802.16 Signal Analyzers Fixed WiMAX, Mobile WiMAX
  • Digital TV ISDB-T, DVB-T/H Signal Analyzer
  • CPRI RF Measurements
  • 20 MHz demodulation bandwidth
  • Dynamic Range: > 102 dB in 1 Hz RBW
  • DANL: -162 dBm in 1 Hz RBW
  • Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
  • Frequency Accuracy: < ±50 ppb with GPS On
Applications
  • Spectrum monitoring
  • Transmitter Verification: occupied bandwidth, channel power, adjacent channel power ratio
  • Interference Analysis of cellular system, land mobile radio systems, Wi-Fi
  • Signal Strength Mapping
  • Field analysis of 2G/3G/4G and broadcast signals
  • Field Strength Measurements
  • Coverage verification, network optimization
  • Tracking Generator
  • EMF Measurement System
  • CPRI RF Measurements
Options
          Option         Description
  MS2713E-0010 Bias Tee
  MS2713E-0009 20 MHz BW Demod
  MS2713E-0031 GPS Built-in Receiver (Requires Antenna, sold separately)
MS2713E-0019 High Accuracy Power Meter (Requires USB Power Sensor)
MS2713E-0029 Power Meter
MS2713E-0025 Interference Analyzer (Option 31 recommended)
MS2713E-0027 Channel Scanner
MS2713E-0431 Coverage Mapping (Requires Option 31)
MS2713E-0444 EMF Measurement System
MS2713E-0090 Gated Sweep
  MS2713E-0020 Tracking Generator
MS2713E-0509 AM/FM/PM Analyzer with Coverage Mapping (Options 31 and 431 are required for utilization of coverage mapping feature)

MS2713E-0880 GSM/GPRS/EDGE Measurements (Requires Option 9)

MS2713E-0881 W-CDMA/HSPA+ Measurements (Requires Option 9. Option 31 recommended.)

MS2713E-0882 TD-SCDMA/HSPA+ Measurements (Requires Option 9. Requires Option 31 for full functionality.)



MS2713E-0883 LTE/LTE-A FDD/TDD Measurements (Requires Option 9. Requires Option 31 for full functionality.)



MS2713E-0884 CDMA/EV-DO Measurements (Requires Option 9. Requires Option 31 for full functionality.)



MS2713E-0885 WiMAX Fixed/Mobile Measurements (Requires Option 9. Requires Option 31 for full functionality.)




MS2713E-0030 ISDB-T Digital Video Measurements (Requires Option 9)
MS2713E-0032 ISDB-T SFN Measurements (Requires Option 9)
MS2713E-0079 ISDB-T BER Measurements (Requires Option 30, cannot be ordered with Option 751)




MS2713E-0064 DVB-T/H Digital Video Measurements (Requires Option 9)
MS2713E-0078 DVB-T/H SFN Measurements (Requires Option 9)
MS2713E-0057 DVB-T/H BER Measurements (Requires Option 64, cannot be ordered with Option 751)


MS2713E-0751 CPRI RF Measurements (1 SFP Port) (Cannot be ordered with Options 57 or 79)

MS2713E-0413 Ethernet Connectivity

MS2713E-0098 Standard Calibration to Z540
MS2713E-0099 Premium Calibration to Z540 plus test data
