MA8100A Signal Mapper

TRX NEON® Signal Mapper

MA8100A
This product has been discontinued
Overview

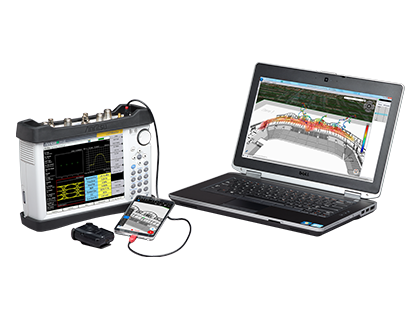

Anritsu is proud to introduce the NEW MA8100A Series TRX NEON® Signal Mapper, a 3D in-building coverage mapping solution for use with all Anritsu Handheld instruments with spectrum analyzer mode using channel power measurements. Instruments supported include LMR Master™, Spectrum Master™, Site Master™, BTS/Cell Master™, and VNA Master™.

Where GPS is unavailable, the Anritsu MA8100A Series solution delivers real-time 3D location information for indoor test and measurement applications. Available with 1, 3 and 5 year licenses, the MA8100A Series consists of a TRX Systems NEON® Tracking Unit, NEON Signal Mapper Software for Android devices, NEON Command Software, and TRX Cloud Service.

The NEON Tracking Unit supports collection and processing of sensor data that delivers 3D location information. The NEON Signal Mapper Application provides an intuitive Android user interface enabling lightly trained users to map signal and sensor information within buildings; users can initialize their location, start/stop mapping and upload/download mapping data to/from the cloud. The NEON Command Software enables creation and visualization of 3D building maps and provides centralized access to the NEON Cloud Service to access stored maps and measurement data.

Integrating NEON’s capability to automatically collect geo-referenced test data with Anritsu handheld spectrum analyzer products saves valuable time and money by
  • Eliminating the need to manually perform "check-ins" at each test point by automatically calculating indoor location
  • Providing vastly more data than is possible with manual processes by recording data with every step
  • Removing typical data recording errors caused by "guesstimating" locations in large buildings through automatic indoor location and path estimation
  • Delivering actionable data in areas not easily analyzed such as stairways and elevators by recording and referencing measurements in 3D
  • Enabling quick analysis of signal coverage and faster problem resolution by delivering the industry’s only geo-referenced 3D visualization
  • Providing color-graded measurement results in 2D and 3D views. Measurement values can be seen by clicking on each point. A .csv file of all measurements is also provided
NEON Signal Mapper Bundles

Bundles Table

MA8100A-001 NEON Signal Mapper with Anritsu Integration (Includes 1 Year NEON Software and Cloud Service (P/N 2300-574) and Tracking Unit (P/N 2000-1852-R)
MA8100A-003 NEON Signal Mapper with Anritsu Integration (Includes 3 Year NEON Software and Cloud Service (P/N 2300-575) and Tracking Unit (P/N 2000-1852-R)
MA8100A-005 NEON Signal Mapper with Anritsu Integration (Includes 5 Year NEON Software and Cloud Service (P/N 2300-576) and Tracking Unit (P/N 2000-1852-R)

Accessory Table

2000-1852-R NEON Tracking Unit (Includes USB connection cable and belt clip)
2000-1853-R Belt clip (for 2000-1852-R NEON Tracking Unit)
Compatibility

The MA8100A TRX NEON Signal Mapper is compatible with the following handheld spectrum analyzers only.

Product Family Handheld Models
UMTS Master MT8220A
BTS Master MT8222A
MT8221B
MT8222B
MT8220T
Cell Master MT8212E
MT8213E
LMR Master S412E
Site Master S332E
S362E
Spectrum Master MS2721B
MS2722C
MS2723B
MS2724B
MS2723C
MS2724C
MS2725C
MS2726C
MS2711E
MS2712E
MS2713E
MS2720T
VNA Master MS2034B
MS2035B
MS2036C
MS2037C
MS2038C
Support
VIDEOS
MA8100A Tutorial – Generating 3D Building Maps

MA8100A Tutorial – Generating 3D Building Maps
Step by step instructions for creating and generating 3D building maps with floorplans

MA8100A Installation Tutorial

MA8100A Tutorial
Step by step installation instructions. NEON Signal Mapper, a 3D in-building solution.

Anritsu MA8100A TRX NEON Signal Mapper

TRX NEON Signal Mapper
Test when GPS is not available, deliver real-time 3D location, for indoor measurement applications

NEON Indoor Mapping with Anritsu LMR Master

NEON Indoor Mapping
TRX NEON Signal Mapper and command software shows mapping in real time
