Low IF/IQ Unbalance Input

MS8901A
This product has been discontinued Replacement Model(s) : MS2690A , MS2712E , MS2830A
Overview

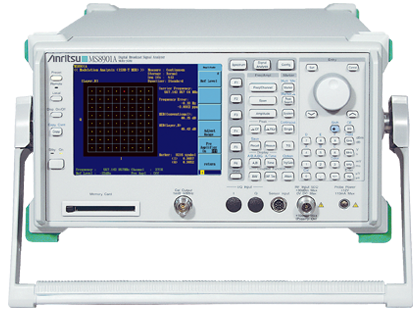

MS8901A-18 Low IF/IQ Unbalance Input - the industry's first that enables the MS8901A Digital Broadcast Signal Analyzer to input an OFDM1 segment signal in the low-frequency band (several hundreds of kHz) used in mobile-type terrestrial digital broadcast receivers.

Integrating this MS8901A-18 to a MS8901A in which MX890120B ISDB-T Signal Analysis Software has been installed makes it possible to perform high-precision quality evaluation, and analyze frequency errors and interference signals for low-frequency OFDM1 segment signal (IF or IQ) used in mobile-type terrestrial digital broadcast reception tuners and other receivers.

Anritsu introduces a measurement solution ideal for total performance evaluation and troubleshooting in the development and manufacture of increasingly popular mobile-type terrestrial digital broadcast receivers.

  • MS8901A-18 Low IF/IQ Unbalance
  • Input enables the MS8901A Digital Broadcast Signal Analyzer to input an OFDM1 segment signal (IF or IQ) of low-frequency band (250 kHz - 5 MHz) used in mobile-type terrestrial digital broadcasting.
