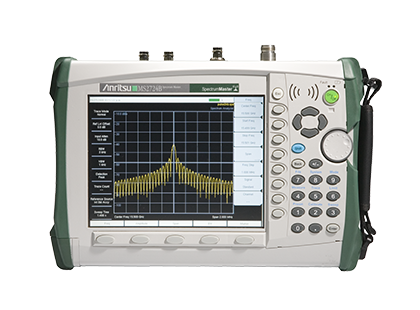

MS2724B

Spectrum Master Handheld Spectrum Analyzer

MS2724B
This product has been discontinued Replacement Model(s) : MS2720T
Overview
  • Handheld, battery-operated design
  • Best in class Displayed Average Noise Level < -159 dBm typical in a 1 Hz resolution bandwidth at 1 GHz
  • RBWs: 1 Hz to 3 MHz in 1-3 sequence, VBWs: 1 Hz to 3 MHz in 1-3 sequence
  • Normal, Max hold, Min hold, user settable trace averaging. Three traces.
  • 6 Markers plus 6 delta markers or choose one marker with 6 delta markers
  • Multi-segmented upper and lower limit lines
The MS2724B handheld spectrum analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, and wireless medical patient monitoring systems. The next generation of Anritsu's best selling Spectrum Master, the MS2724B is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 20 GHz. Weighing in at less than 8 pounds, it is equally at home on the engineering bench and in the field. It is ideally suited for measuring up to the fifth harmonic of 3G cellular phone base stations.

Several smart measurements are built into the MS2724B including channel power, adjacent channel power ratio, Carrier to Interference ratio (C/I), and field strength. In addition, an AM/FM/SSB demodulator is included. Demodulated signals can be monitored using the internal speaker or by using a universal 2.5 mm 3-wire headset, such as used with many cellular telephones.

The MS2724B spectrum analyzer has low phase noise of -104 dBc/Hz typical at 1 GHz @ 10 kHz offset, best in its class typical DANL of -159 dBm at 1 GHz in a 1 Hz RBW, resolution bandwidth (RBW) range of 1 Hz to 3 MHz and video bandwidth (VBW) range of 1 Hz to 3 MHz. It also has the fastest sweep speeds of any spectrum analyzer in its class.

Store over 1000 test set-ups and measurements internally. The use of Compact Flash memory modules or USB Flash Drives allow an unlimited number of traces and setups to be stored. Measurements may be stored directly to the compact flash module. A 512 MB module will hold over 20,000 Spectrum Analyzer measurements. Remote programming using the Ethernet 10/100 Base-T connection is provided using SCPI programming. The Ethernet connection gives the user flexibility in remotely operating the instrument using Anritsu's remote access software, shipped with the product. Measurements and setups may be uploaded and downloaded using either the Ethernet or the USB connection.

Quasi-peak detection is included along with CISPR resolution bandwidth.
Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish, Korean, Italian)

Applications

Convenient operating procedures, high sensitivity, excellent repeatability and exceptional performance enable the MS2724B to simplify measurements on wireless systems for easy verification of system compliance. Typical applications include:


  • Measurement of the 5th harmonic of 3G cellular base station signals
  • Transmitter Spectrum Analysis - occupied bandwidth, channel power, adjacent channel power ratio and modulation
  • Received Signal Analysis - location and identification of in-band interference and out-of-band spurious signals and spectral masks
  • Signal Strength Mapping - to determine the most suitable location for antennas, base stations and repeaters
  • Field analysis of 3G signals - fast sweep speed, field-swappable battery, smart measurements and daylight-viewable display make the MS2724B an ideal choice for the challenge of rugged environments
  • Broadcast measurement AM & FM analog and IBOC proofing measurements
Options

Option

 Description

Option Ordering Number

Option 9RF & Demodulation Hardware

MS2724B-009

Option 19High Accuracy Power Meter (PSN50 sensor not included)

MS2724B-019

Option 25Interference Analysis - provides a spectrogram display, signal strengh with audible tone and RSSI (received signal strength indication)

MS2724B-025

Option 27Channel Scanner - adds the capability to select up to 20 channels or signals to monitor (Great for interference mitigation)

MS2724B-027

Option 31GPS (includes GPS antenna)

MS2724B-031

Option 33cdmaOne / CDMA2000 1X Over The Air (OTA) Measurements (requires Option 009)

MS2724B-033

Option 34CDMA2000 1xEV-DO Over The Air (OTA) Measurements (requires Option 009)

MS2724B-034

Option 35W-CDMA/HSDPA OTA (requires Opt. 009)

MS2724B-035

Option 37Mobile WiMAX, Over the Air (requires Option 009)

MS2724B-037

Option 38TD-SCDMA / HSDPA (OTA)Over the Air (requires Option 009)

MS2724B-038

Option 40GSM/GPRS/EDGE RF Measurement

MS2724B-040

Option 41GSM/GPRS/EDGE Demodulation (requires Option 009)

MS2724B-041

Option 42cdmaOne / CDMA2000 1X RF Measurements (requires Option 009)

MS2724B-042

Option 43cdmaOne / CDMA2000 1X Demodulator (requires Option 009)

MS2724B-043

Option 44W-CDMA/HSDPA RF Measurements (requires Option 009)

MS2724B-044

Option 45W-CDMA Demodulator (requires Opt. 009)

MS2724B-045

Option 46WiMAX "D" Measurements

MS2724B-046

Option 47WiMAX "D" Demodulation (requires Option 009)

MS2724B-047

Option 60TD-SCDMA / HSDPA RF Measurements (requires Option 009)

MS2724B-060

Option 61

TD-SCDMA Demodulator (requires Option 009)

MS2724B-061

Option 62CDMA2000 1xEV-DO RF Measurements (requires Option 009)

MS2724B-062

Option 63CDMA2000 1xEV-DO Demodulator (requires Option 009)

MS2724B-063

Option 65W-CDMA / HSDPA Demodulator (requires Opt. 009)

MS2724B-065

Option 66Mobile WiMAX RF Measurements (requires Option 009)

MS2724B-066

Option 67Mobile WiMAX Demodulation (requires Option 009)

MS2724B-067

Option 89Zero Span IF output (requires Option 009)

MS2724B-089

Option 541LTE RF Measurements (requires Option 009)

MS2724B-0541

Option 542LTE Modulation Measurements (requires Option 009)

MS2724B-0542

Option 546LTE Over-the-Air (OTA) Measurements (requires Option 009)

MS2724B-0546
