Bit Error Rate Tester

This product has been discontinued
  • PN9/15/23 stage and ALL 0 / 1, 1010 can be found by sending
  • As measured interface NRZ, DVB-SPI, DVB-ASI standard
  • DVB I / F with a choice of locations in the data packet error rate measurement
  • Errors can be measured by inserting

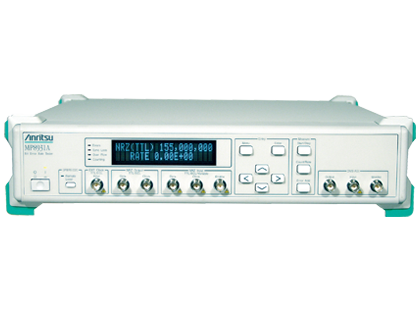

MP8931A Bit Error Rate Tester is the only digital broadcast I / F is a DVB-ASI, DVB-SPI and conventional NRZ I / F with a bit error measurement.

Item Specification
Test interface NRZ, DVB-SPI, DVB-ASI
Remote control interface GBIB、RS-232C
Internal clock frecuency 1 kHz to 155 MHz
External clock frquency 1 kHz to 155 MHz, TTL/ECL, 75Ω/1MΩ
Dispatched measured pattern PN9, PN9_INV, PN15, PN15_INV, PN23, PN23_INV,ALL"0", ALL"1", "1010"
Error insertion No, manual insertion sequence(10-3,10-4,10-5,10-6,10-7)
Bits set measurement time Test time (0~59seconds, 0~59minutes, 0~999hours)
Test bits (103~1015)、manual
AUTOSYNC (Out of work time) ON (remeasurement after resynchronization)、
OFF (without re-synchronization, continuous measurement)
DVB packet interface type ①204 : (1)+187+(16) packets
②188 : (1)+187 packets
③204 : (1+3)+184+(16) packets
④188 : (1+3)+184 packets
⑤204 : (1)+203 packets
⑥204 : (1+3)+200 packets
Throughput settings 1 MHz~27 MHz
