K Male In-Line Cable Connector

This product has been discontinued

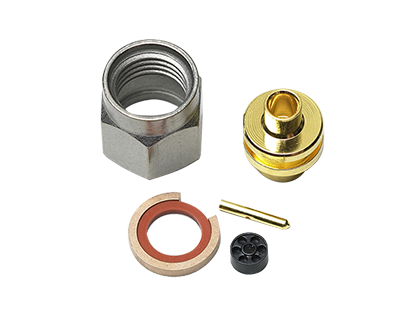

The K101M-085-R K male in-line cable connector is designed to install on V085 2.16 mm (0.085 inch) semi-rigid cable and provides excellent performance from DC to 40 GHz. A version of the connector called K101M is used with 3 mm (0.118 inch) semi-rigid cable. The female version for 3 mm cable is called K101F.

Anritsu supplies tools to simplify installation of connectors onto cables:
- Tool 01-107M is a soldering fixture used to hold parts in place during soldering; they come in packages of 10.
- The SC5296 is a special K Connector ® Assembling Fixture Kit used to measure the center conductor length of V085 cable and install the connector bead. To order this special tool, contact your Anritsu representative.

  • Excellent Performance up to 40 GHz
  • Performance Exceeding SMA Below 18 GHz
  • Superior Reliability
  • Compatibility with SMA, WSMA, and 3.5 mm
  • Complete Testability on Existing Network Analyzers
  • RoHS compliant

The K101M-085-R replaces the K101M-085

The K101M-085-R is RoHS compliant. It contains less than the Maximum Concentration Values (MCVs) for Lead, Mercury, Cadmium, Hexavalent Chromium, PBB and PBDE per EU directive 2002/95/EC. The following RoHS exemption applies: Lead as an alloying element in copper containing up to 4% (40000PPM) lead by weight.

All materials contained in the "-R" version are identical to the materials contained in the obsoleted part. Only the "-R" suffix was added to signify RoHS compliance.
