K Female In-Line Cable Connector

K101F-R
This product has been discontinued
Overview

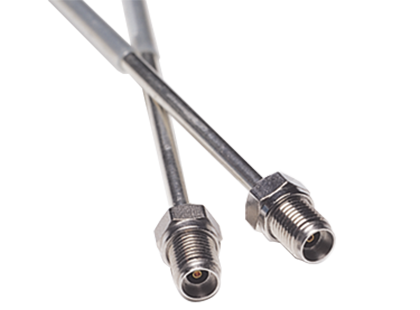

The K101F-R female cable connector is designed to install on K118 3 mm (0.118 inch) semi-rigid cable and provides excellent performance from DC to 40 GHz. Male versions of the connector are called K101M which is used on 3 mm semi-rigid cable, and K101M-085 for use on V085 2.16 mm (0.085 inch) semi-rigid cable.

Anritsu supplies tools to simplify installation of the connector onto a cable:

  • Tool 01-107F is a soldering fixture used to hold parts in place during soldering; they come in packages of 10.
  • The 01-118 K Connector ® Assembling Fixture Kit is a multi-purpose tool used to measure the center conductor length and install the connector bead.
  • The 01-105A Connector Torquing Kit is used to install the outer conductor barrel into the connector.
    • Excellent Performance up to 40 GHz
    • Performance Exceeding SMA Below 18 GHz
    • Superior Reliability
    • Compatibility with SMA, WSMA, and 3.5 mm
    • Complete Testability on Existing Network Analyzers
    Specifications

    The K101F-R replaces the K101F

    The K101F-R is RoHS compliant. It contains less than the Maximum Concentration Values (MCVs) for Lead, Mercury, Cadmium, Hexavalent Chromium, PBB and PBDE per EU directive 2002/95/EC.

    The following RoHS exemption applies: Lead as an alloying element in copper containing up to 4% (40000PPM) lead by weight.

    All materials contained in the "-R" version are identical to the materials contained in the obsoleted part. Only the "-R" suffix was added to signify RoHS compliance.
