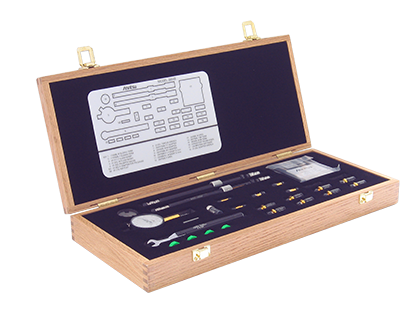

3654 Series Connector Calibration Kit

V Connector Calibration Kit

3654 Series
This product has been discontinued
Overview
  • Supports Calibration with Opens
  • Supports Calibration with Shorts
  • Supports Calibration with Broadband loads
  • Option 1 adds sliding loads
  • A2LA accredited calibrations available

The Anritsu Calibration kits contain all the precision components and tools required to calibrate your VNA or VNMS for 12-term error-corrected measurements in the connector style of your choice. Components are included for calibrating male and female test ports as required. The kits support calibration with opens, shorts, and broadband loads.



Model Number

Description

Details

3654B

V Calibration® Kit

  • 33VFVF50B Female-Female Adapter (2)
  • 33VV50B Male-Male Adapter
  • 33VVF50B Male-Female Adapter (2)
  • 28V50B Male Broadband Termination (2)
  • 28VF50B Female Broadband Termination (2)
  • 24V50B Male Open
  • 24KF50B Female Open
  • 23V50B-5.1 Male Short 5.1 mm
  • 23VF50B-5.1 Female Short 5.1 mm
  • 01-201 Torque Wrench
  • 01-210 Reference Flat
  • 01-322 Pin Depth Gauge
  • 01-323 Female Adapter for pin gauge
  • 01-204 Adapter Wrench
  • 01-312 Male Flush Short
  • 01-311 Female Flush Short
  • Calibration coefficients diskette
  • Connector thumb wheel (4)
