Branch

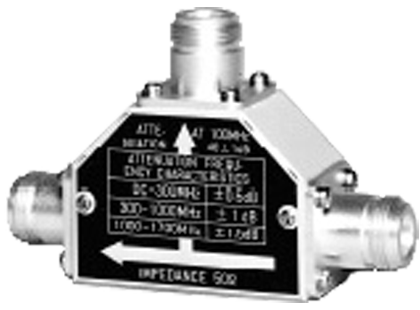

MP640A
This product has been discontinued
Overview

The MP640A is branch that provides an attenuated sample of a signal to a port for analysis without perturbing the main signal.

The maximum allowable input power is 16 W.

  • Attenuation
    -input terminal to attenuated terminal
    -
    40 dB ±1 dB at 100 MHz

  • Attenuation characteristics
    -
    ±0.5 dB (DC to 300 MHz)
    - ±1.0 dB (300 to 1000 MHz)
    - ±1.5 dB (1000 to 1700 MHz)

  • Insertion loss
    - ≤0.2 dB (DC to 300 MHz)
     - ≤0.5 dB (300 to 1000 MHz)
    - ≤1.0 dB (1000 to 1700 MHz)

  • Frequency range DC to 1700 MHz
  • Input/Output connector
    • N-type connector
    • 50 Ω
    • VSWR: ≤1.2
