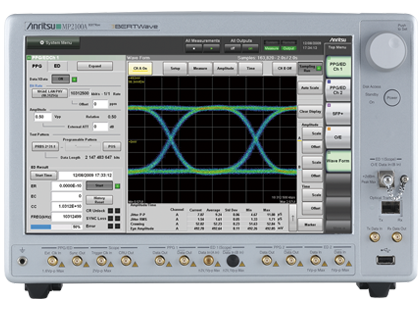

 BERTWave MP2100A

BERTWave (BERT, Sampling Oscilloscope)

MP2100A
This product has been discontinued Replacement Model(s) : MP2100B
Overview
  • All-in-one BER and Eye Pattern Measurements
  • High-speed Remote Tests
  • Supports Electrical and Optical Interfaces
  • High-speed Mask Tests
  • Easy Operability, Flash Disk Drive, and Eco-friendly
  • All-in-one unit supporting simultaneous Jitter, Eye Pattern and Eye Mask measurements
  • Supports all WDP measurements
  • Simultaneous sampling and ideal Equalizer/Emphasis value calculation with Eye display
  • Simultaneous Eye Pattern, Eye Mask and Jitter Measurements for simulation waveform
The MP2100A is an all-in-one BERT and Eye/Pulse Scope solution for evaluating optical active devices in optical communication systems.
To meet the need for the fastest possible measurement speeds on production lines for active optical devices, the Gating Time has been slashed by 90% compared to conventional BERT equipment using remote commands and the Eye/Pulse Scope function is 300% faster. In addition, measurement times are much shorter due to the simultaneous BER measurement and Eye pattern analysis.

The Jitter Analysis Software MX210001A has high-speed and jitter-measurement function supporting all-in-one measurements, such as simultaneous jitter analysis, Eye pattern measurement and Eye mask test measurements. Moreover, the high-speed sampling increases measurement efficiency by reducing measurement time. And combining the MX210001A with MATLAB® supports WDP, TWDP and dWDP measurements for evaluating the waveform dispersion of specific signals.

Adding the Transmission Analysis Software MX210002A to the BERTWave supports Tx analyses (S21 Gain, Phase), and waveform simulation (de-embedded) using linear equalizer, filter, and emphasis operations; simultaneous waveform sampling and simulation support simultaneous Eye pattern measurement and Eye mask test measurements. Furthermore, combined tracking with the MX210001A software permits simultaneous post-simulation waveform jitter measurement.

MATLAB® is a trademark of The MathWorks Inc.







Look at this comparison.

All-in-one PPG, ED, Scope, and Optical IF for incredible, space-saving compactness







>>>Click here for details about the BERTWAVE PE
supporting BER measurements.


>>>Click here for details about the BERTWAVE SS
supporting Eye/Pulse Scope measurements.



BERT

 Operation bit rate With MP2100A/MP2101A-090 Without MP2100A/MP2101A-090

 PPG, ED Common;
 Variable bit-rate range (1 kbit/s step)
    8 Gbit/s to 12.5 Gbit/s

 1/N bit-rate operation range
    N=2:   4 Gbit/s to 6.25 Gbit/s
    N=4:   2 Gbit/s to 3.125 Gbit/s
    N=8:   1 Gbit/s to 1.5625 Gbit/s
    N=16: 500 Mbit/s to 781.25 Mbit/s
    N=32: 250 Mbit/s to 390.625 Mbit/s
    N=64: 125 Mbit/s to 195.312 Mbit/s

 PPG;
 Variable bit-rate range (1 kbit/s step)
    8.5 Gbit/s to 11.32 Gbit/s

 1/N bit-rate operation range
    N=2:    4.25 Gbit/s to 5.66 Gbit/s
    N=4:    2.125 Gbit/s to 2.83 Gbit/s
    N=8:    1.0625 Gbit/s to 1.415 Gbit/s
    N=16:  531.25 Mbit/s to 701.5 Mbit/s
    N=32:  265.625 Mbit/s to 353.75 Mbit/s
    N=64:  132.813 Mbit/s to 176.875 Mbit/s

 ED;
 Variable bit-rate range (1 kbit/s step)
    8.5 Gbit/s to 11.32 Gbit/s
    4.25 Gbit/s to 5.66 Gbit/s

 Test Pattern   PRBS: 27-1, 29-1, 215-1, 223-1, 231-1, (Invert ON/OFF),
 USER Data: 1.3 Mbit programmable (sample pattern file such as CJPAT and so on)
 Electrical Data Output  Data, Xdata
 Amplitude  0.1 Vp-p to 0.8 Vp-p
 Electrical Data Input  Data, Xdata (Option 001),
 Data (Option 003)
 Amplitude  0.1 Vp-p to 0.8 Vp-p
 O/E Input (Option 003)  Optical Data
 Wavelength Range  750 nm to 1650 nm
 XFP Slot (Option 050)   XFP Slot
 SFP+ Slot (Option 051)   SFP+ Slot



Eye/Pulse Scope

 Bandwidth (-3 dB)  DC to 20 GHz minimum, DC to 25 GHz Typical
 Display   Eye Pattern, Pulse Pattern
 Measurement Function  Statistical (NRZ),  Histogram, Mask Compliance
 Sampling Speed  100 K samples/sec, Typical
 O/E Input (Option 003)  Optical Data
    Wavelength Range  750 nm to 1650 nm
 Clock Recovery (Option 055)  0.1 GHz to 2.7 GHz, 8.5 GHz to 12.5 GHz



MX210001A Jitter Analysis Software

 Operating Conditions  Operates only when installed in MP2100A/MP2102A with correct license information
 The installer runs with V3.00.00 or later
 Other use conditions comply with MP2100A series
 The WDP runs under MATLAB R2010b SP1
 Measurement Algorithm  Histogram mode, Pattern Search mode
 Histogram mode
 Measurement Items  TJ (1.0E-12), TJ (user defined), RJ (d-d), DJ (d-d), DDPWS, J2 jitter analysis, J9 jitter analysis,
 Eye opening
 Pattern Search mode
 Measurement Items  TJ (1.0e-12), TJ (user defined), RJ (d-d), RJ (rms), DJ (d-d), PJ (p-p), DDJ (p-p), DCD, ISI (p-p),
 Eye opening, J2 jitter analysis, J9 jitter analysis, DDPWS, PJ Frequency
 WDP Measurement  Requires installation of MATLAB 2010b by MathWorks
 Measurement Items  WDP, dWDP, TWDP, dTWDP, WDPc, dWDPc, TWDPc, dWDPc



MX210002A Transmission Analysis Software

 Operating Conditions  Operates only when installed in MP2100A with correct license information
 The installer runs with V3.00.00 or later
 Other use conditions comply with MP2100A series
 Measurement Mode  Transmission analysis, Waveform estimation
 Transmission Analysis
 Measurement Items  Gain graph, Phase graph, Group delay graph
 (Phase graph and Group delay graph switching display)
 Waveform Estimation
 Equalizer Setting  Selects reflector, non-reflector at calculation
 Emphasis Format  2Post/1Pre, 3Post, 1Post/1Pre, 2Post, 1Post
 Device Character  Reads S2P File
 Jitter Analysis  Displays estimated waveform calculation results at MX210001A
 (when MX210001A installed in MP2100A)
Lineup

BERTWave MP2100A



BERTWave MP2100A

The BERTWave MP2100A is the all-in-one BERT and Eye/Pulse Scope measurement solution. Simultaneous BER measurement and Eye pattern analysis reduces measurement times by eliminating time-consuming setup. The MP2100A series is the ideal all-in-one solution supporting both R&D and manufacturing.




BERTWave PE MP2101A



BERTWave PE MP2101A

The BERTWave PE MP2101A is the solution just for BER measurements. Expanding the BERTWave PE to 2 channels supports easy, efficient, simultaneous TRx measurements by eliminating complex line changes. Moreover, all-in-one support for PPG/ED crosstalk tests reduces measurement times and setup costs.

>>>Click here for details about the BERTWave PE MP2101A




BERTWave SS MP2102A



BERTWave SS MP2102A

The BERTWave SS MP2102A is the ideal solution just for high-speed Eye pattern analysis using the built-in clock recovery function which supports evaluation of the optical characteristics of long-distance transmission equipment and devices with no clock output. Built-in time/amplitude test, histogram analysis, and mask/mask margin test functions make it the perfect solution for signal quality analyses.

>>>Click here for details about the BERTWave SS MP2102A




Software

-Jitter Analysis Software-

The Jitter Analysis Software MX210001A has high-speed and jitter-measurement function supporting all-in-one measurements, such as simultaneous jitter analysis, Eye pattern measurement and Eye mask test measurements.
Moreover, the high-speed sampling increases measurement efficiency by reducing measurement time. And combining the MX210001A with MATLAB supports WDP, TWDP and dWDP measurements for evaluating the waveform dispersion of specific signals.

>>>Click here for details about the Jitter Analysis Software MX210001A



-Transmission Analysis Software-

Transmission Analysis Software MX210002A to the BERTWave supports Tx analyses (S21 Gain, Phase), and waveform simulation (de-embedded) using linear equalizer, filter, and emphasis operations; simultaneous waveform sampling and simulation support simultaneous Eye pattern measurement and Eye mask test measurements. Furthermore, combined tracking with the MX210001A software permits simultaneous post-simulation waveform jitter measurement.

>>>Click here for details about the Transmission Analysis Software MX210002A
