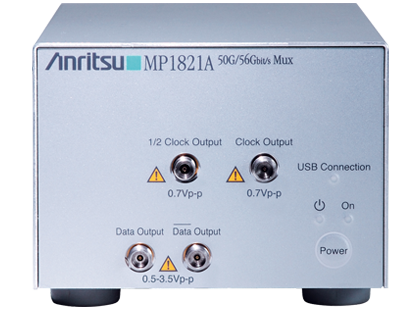

50G/56 Gbit/s MUX MP1821A

50G/56 Gbit/s MUX

This product has been discontinued Replacement Model(s) : MP1861A

Internet Exchanges (IX) and ISPs require larger network capacities as more Internet users access more rich-content services over faster access networks such as DSL, LTE, WiMAX, FTTx, etc. To meet these needs, IEEE, ITU-T, and OIF are working to define issues and new standards for next-generation 40 Gbit/s and 100 Gbit/s networks. These new standards use WDM transmission equipment and phase-modulation technologies to curb symbol rate but further expansion of transmission capacity requires higher symbol rates.

The 50G/56 Gbit/s MUX MP1821A and 50G/56 Gbit/s DEMUX MP1822A supports operation frequencies up to 56 Gbit/s to meet these needs. Moreover, a full line of versatile functions and excellent performance for R&D into 40 Gbit/s fast next-generation devices, and ultra-fast 50 Gbit/s optical modules, supports customers with the perfect solution for bringing new products to market as early as possible.

  • Supports 8 Gbit/s to 56 Gbit/s
  • Compact remote head
  • Sophisticated waveform
    • 8 ps (20 to 80%) high-speed Tr/Tf time
    • 4 psp-p low-jitter waveform
    • 3.5 Vp-p max. high amplitude waveform
    • 30 to 70% wide crosspoint adjustment function
  • Automatic measurement function
  • Pre-code / De-code functions
  • Flexible expandability
