OLT and ONU BER Measurements for 100G-EPON

4/01/2017

Launch of SQA Series 100G-EPON Test Solution

January 4th, 2017 – Anritsu Corporation (President Hirokazu Hashimoto) is launching its Signal Quality Analyzer MP1800A Series 100G-EPON*1 Test Solution on January 4, 2017.
The newly developed 100G-EPON Application Software MX180014A and Signal Quality Analyzer MP1800A supports BER measurements of OLT*2 and ONU*3 for the latest 100G-EPON standard.

[Development Background]
Optical Access networks using Passive Optical Network (PON) technology are expanding due to the explosive increase in broadband services supporting 4K/8K video and other applications. Due to the recent growth in data traffic, optical Access networks are rapidly transitioning to high-speed 10-Gbit/s PON technology while simultaneously discussing adoption of the next-generation 100G-EPON standard (IEEE802.3ca) offering bit rates of 25 Gbit/s per signal. As a result, development of OLT and ONU units for PON systems requires both wideband 25-Gbit/s performance as well as more precise timing and margin measurements due to the shorter time per bit.

[MX180014A for PON Test]
The MP1800A is a plug-in modular Bit Error Rate Tester (BERT) for measuring a wide range of interfaces up to multichannel 32 Gbit/s. The MP1800A signal-source multichannel synchronization and skew adjustment functions are optimum for OLT tests requiring high-accuracy timing setting. In addition, high-reproducibility BER measurement is achieved by high-quality output waveforms and high input sensitivity performance.
The MX180014A software controls the MP1800A to generate 2ch test-signal burst patterns*4 and set skew. OLT evaluation input sensitivity and timing tests are made easy by the GUI for setting test-signal pattern length and timing.

[Features]

  • BER Measurement of 100G-EPON OLT/ONU
  • Multichannel Sync and Skew Adjustment Functions
  • High-reproducibility BER Measurements using High-quality Output Waveforms and High-input Sensitivity (10 mV typ.)
  • Easy GUI for 2ch Test Signal Pattern Length and Timing Settings

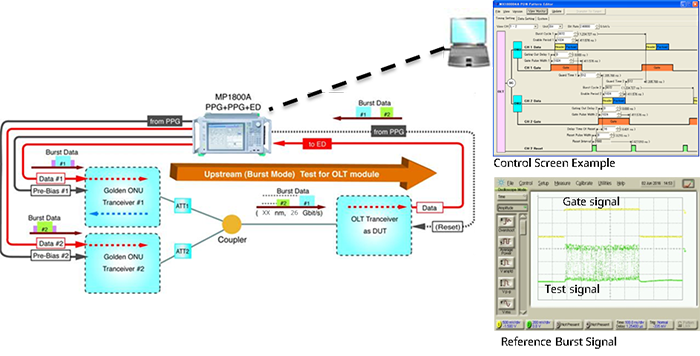

MP1800A

[Details of MP1800A]

[Target Markets and Applications]

  • Target Markets: 100G-EPON
  • Target Applications: Development of 100G-EPON OLT and ONU

[Glossary]
*1 EPON: Ethernet Passive Optical Network
Network using Ethernet communications over Passive Optical Network (PON) for communications with multiple households by splitting one optical fiber

*2 OLT: Optical Line Terminal
Device installed in PON system provider office

*3 ONU: Optical Network Unit
Device installed at PON system user side

*4 Burst Pattern
Continuous signal sent after some signal-off time
