Master Software Tools (MST)



Line Sweep Tools | Master Software Tools |  Handheld Software Tools |  Handheld Code Loader  |  easyTest Tools  |  easyMap Tools  | Wireless Remote Tools


Master Software Tools (MST) allows Anritsu Spectrum Analyzer users to Capture, Analyze and Document spectrum and spectrogram traces. MST also allows analysis of certain transmission measurements, transmitter signal quality measurements, and backhaul tests. MST is useful for those involved in the analysis of:

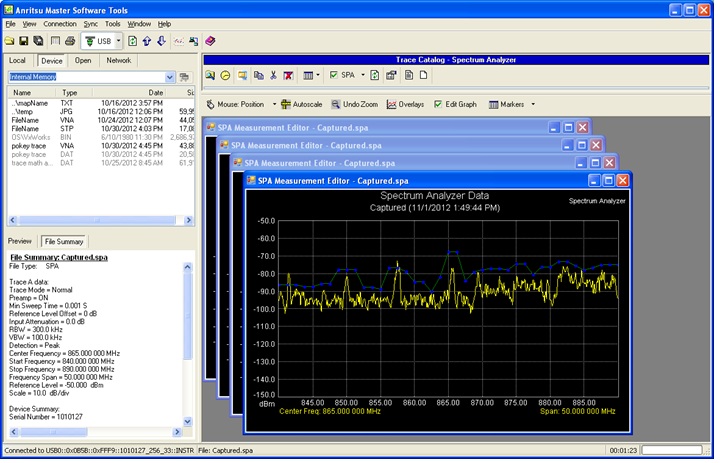

MST
  • RF Spectrum Analyzer traces
  • RF Interference
  • Spectrum Monitoring results
  • Transmission Measurements
  • Transmitter signal quality tests
  • T1, T3, and E1 backhaul tests

Features and Benefits

MST can capture test results over Ethernet, USB Cable, or through the use of a USB Memory Stick, depending on the model and options of your Anritsu Handheld Instrument. Analysis capabilities vary depending on the measurement captured. Once opened in MST, measurement results can be included in a MST generated report or inserted into other documents.


Instruments Supported

MST works with Anritsu Handheld Instruments operating in these modes:

  • Spectrum Analyzer
  • Interference Analyzer
  • Transmission Test
  • Channel Scanner
  • T1/T3 or E1 Analyzer
  • Transmitter Signal Quality Tests including GSM, LTE, W-CDMA, CDMA, WiMAX, DVB-T/H and ISDB

The measurement modes listed above occur in these Anritsu Handheld Instruments:


Product Family Instrument
BTS Master MT8222A, MT8221B, MT8222B, MT8220T
Cell Master MT8212E, MT8213E, MT8212B
LMR Master S412E
Spectrum Master MS2712E, MS2713E, MS2711E, MS2711D, MS2721A, MS2721B, MS2723B, MS2724B, MS2717A, MS2717B, MS2718B, MS2719B, MS2722C, MS2723C, MS2724C, MS2725C, MS2726C, MS2720T
VNA Master MS2024B, MS2025B, MS2034B, MS2035B, MS2026C, MS2028C, MS2036C, MS2038C
Other models MS8911A, MS8911B, MT8220A

Although MST will open measurements from other modes and instruments than those listed above, other measurements are not fully supported. Please consult the MST manual for details. A soft copy of this manual can be found within MST by clicking on Help, and Help Contents.  






PC Requirements


Anritsu’s software tools runs on computers using Windows
operating systems, specifically:


  • Windows XP, Service Pack 2 or higher
  • Windows Vista (32 bit or 64 bit)
  • Windows 7 (32 bit or 64 bit)
  • Windows 8 (32 bit or 64 bit)

In addition, the PC must have at least:


  • 1 GB of RAM
  • 1 GB of available hard disk space




Additional Information


Master Software Tools on-line resources include:



File: Anritsu_SWT_Full_Installer_V1.02.exe
Version: 1.02
Date: 08/27/14
Size: 370 KB

Contains:
LST v1.54, MST v2.24, eTT v1.04, eMT v2.03, WRT v1.04



This stand-alone installer will download all Anritsu software needed to install your chosen PC Tools software, and do so all in one file. This is ideal if you will be doing the installation on a computer without internet access.


Windows 7 or Windows 8 computers may still need internet access to download the Microsoft .NET 3.5 suite of support files.


If you are unable to download our software, please contact us.

File: Anritsu_SWT_Small_Installer_V1.02.exe
Version: 1.02
Date: 08/27/14
Size: 370 KB

Downloads:
LST v1.54, MST v2.24, eTT v1.04, eMT v2.03, WRT v1.04



This small web-centric installer will manage the downloading and installation of your chosen PC software tools. This installer requires internet access at installation time.
