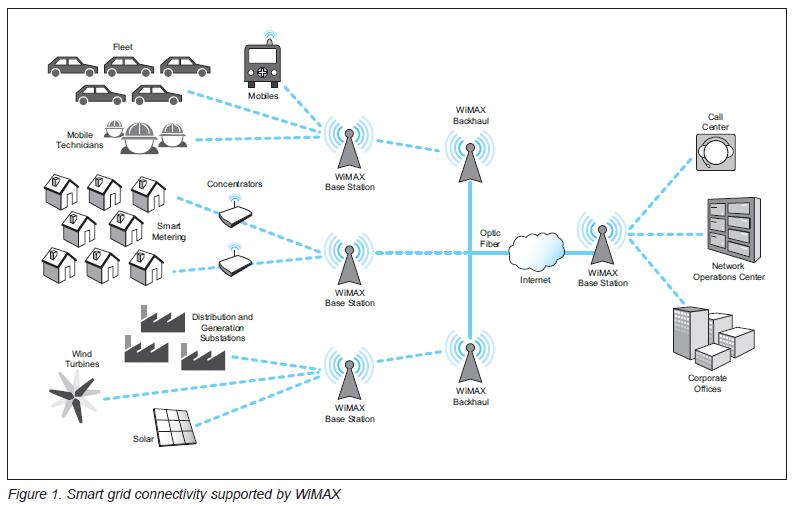

Smart Grid

9 kHz to 3 GHZ

Regulatory requirements are growing. You're under increasing pressure to cut costs. And improving system uptime is always a top priority. The MS2711E Spectrum Master helps you do all of this and more. Whether you are performing complex interference analyses or assessing signal quality, the MS2711E Spectrum Master delivers the ease of use, rich functionality, and best-in-class price/performance you've come to expect from Anritsu.

9 kHz to 4 GHz

Regulatory requirements are growing. You're under increasing pressure to cut costs. And improving system uptime is always a top priority. The MS2712E Spectrum Master helps you do all of this and more. Whether you are performing complex interference analysis or assessing signal quality, the MS2712E Spectrum Master delivers the ease of use, rich functionality, and best-in-class price/performance you've come to expect from Anritsu. Designed to handle the most punishing field conditions, the MS2712E allows you to monitor, locate, identify, and analyze a broad range of cellular, 2G/3G/4G, land mobile radio, Wi-Fi, and broadcast signals. With a rich array of configuration options, the multifunctional MS2712E eliminates the need for you to learn and carry multiple instruments when locating and identifying signals over wide frequency ranges.

9 kHz to 6 GHz

Regulatory requirements are growing. You're under increasing pressure to cut costs. And improving system uptime is always a top priority. The MS2713E Spectrum Master helps you do all of this and more. Whether you are performing complex interference analysis or assessing signal quality, the MS2713E Spectrum Master delivers the ease of use, rich functionality, and best-in-class price/performance you've come to expect from Anritsu. Designed to handle the most punishing field conditions, the MS2713E allows you to monitor, locate, identify, and analyze a broad range of cellular, 2G/3G/4G, land mobile radio, Wi-Fi, and broadcast signals. With a rich array of configuration options, the multifunctional MS2713E eliminates the need for you to learn and carry multiple instruments when locating and identifying signals over wide frequency ranges.

2 MHz to 4 GHz Cable & Antenna Analyzer
100 kHz to 4 GHz Spectrum Analyzer

To keep up in today's rapidly evolving wireless communications market, you need tools that enable you to efficiently maintain legacy networks in addition to the new 3G and 4G networks now being installed. And as the market continues to expand, you're being required to service more base stations than ever before. This means completing sweeps quickly, performing calibrations instantly, and implementing fast trace naming while in the field.

2 MHz to 6 GHz Cable & Antenna Analyzer
100 kHz to 6 GHz Spectrum Analyzer

To keep up in today's rapidly evolving wireless communications market, you need tools that enable you to efficiently maintain legacy networks in addition to the new 3G and 4G networks now being installed. And as the market continues to expand, you're being required to service more base stations than ever before. This means completing sweeps quickly, performing calibrations instantly, and implementing fast trace naming while in the field.

9 kHz to 7.1 GHz

Benchtop features and bandwidth in a handheld spectrum analyzer!

The MS2721B handheld spectrum analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, WiMAX, and wireless medical patient monitoring systems. The MS2721B is ideal for AM and FM broadcast proofing because the wide dynamic range and low phase noise make NRSC measurements on analog and IBOC signals easy with no need for an external carrier notch filter.  The MS2721B is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 7.1 GHz. Weighing in at less than 7 pounds, it is equally at home on the engineering bench and in the field.

Demodulated signals can be monitored using the internal speaker or by using a universal 2.5 mm 3-wire headset, such as used with many cellular telephones.

9 kHz to 9 GHz

Anritsu's latest generation of handheld spectrum analyzers includes the MS2722C Spectrum Master. This represents the company's highest performance handheld spectrum analyzer from the MS272xC family. Exciting new features and options bring more value to the user over our previous generations:

• Frequency Coverage - 9 kHz to 9 GHz
• Broadband preamplifiers over the whole frequency range for increased sensitivity around 20 dB
• Three Sweep Modes – with improved Sweep Speed - up to 100 times faster
• Resolution Bandwidths from 1 Hz to 10 MHz
• New triggering choices including hysteresis, hold-off, and delay
• More zero-span capabilities including 10 MHz RBW & VBW
• Enhanced Spectrum Analyzer GUI including large marker display choice
• Choice of display options for readability – normal, black and white, night vision, high contrast
• On-screen Interference Mapping as part of the Interference Analysis option
• LTE Measurements up to 20 MHz
• 30 MHz Wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any other wideband signal
• Burst detect captures 200 μs bursts the first time, every time

9 kHz to 13 GHz

Anritsu's latest generation of handheld spectrum analyzers includes the MS2723C Spectrum Master. This represents the company's highest performance handheld spectrum analyzer from the MS272xC family. Exciting new features and options bring more value to the user over our previous generations:

• Frequency Coverage - 9 kHz to 13 GHz
• Broadband preamplifiers over the whole frequency range for increased sensitivity around 20 dB
• Three Sweep Modes – with improved Sweep Speed - up to 100 times faster
• Resolution Bandwidths from 1 Hz to 10 MHz
• New triggering choices including hysteresis, hold-off, and delay
• More zero-span capabilities including 10 MHz RBW & VBW
• Enhanced Spectrum Analyzer GUI including large marker display choice
• Choice of display options for readability – normal, black and white, night vision, high contrast
• On-screen Interference Mapping as part of the Interference Analysis option
• LTE Measurements up to 20 MHz
• 30 MHz Wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any other wideband signal
• Burst detect captures 200 μs bursts the first time, every time

9 kHz to 20 GHz

Anritsu's latest generation of handheld spectrum analyzers includes the MS2724C Spectrum Master. This represents the company's highest performance handheld spectrum analyzer from the MS272xC family. Exciting new features and options bring more value to the user over our previous generations:

• Frequency Coverage - 9 kHz to 20 GHz
• Broadband preamplifiers over the whole frequency range for increased sensitivity around 20 dB
• Three Sweep Modes – with improved Sweep Speed - up to 100 times faster
• Resolution Bandwidths from 1 Hz to 10 MHz
• New triggering choices including hysteresis, hold-off, and delay
• More zero-span capabilities including 10 MHz RBW & VBW
• Enhanced Spectrum Analyzer GUI including large marker display choice
• Choice of display options for readability – normal, black and white, night vision, high contrast
• On-screen Interference Mapping as part of the Interference Analysis option
• LTE Measurements up to 20 MHz
• 30 MHz Wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any other wideband signal
• Burst detect captures 200 μs bursts the first time, every time

9 kHz to 32 GHz

Anritsu's latest generation of handheld spectrum analyzers includes the MS2725C Spectrum Master. This represents the company's highest performance handheld spectrum analyzer from the MS272xC family. Exciting new features and options bring more value to the user over our previous generations:

• Frequency Coverage - 9 kHz to 32 GHz
• Broadband preamplifiers over the whole frequency range for increased sensitivity around 20 dB
• Three Sweep Modes – with improved Sweep Speed - up to 100 times faster
• Resolution Bandwidths from 1 Hz to 10 MHz
• New triggering choices including hysteresis, hold-off, and delay
• More zero-span capabilities including 10 MHz RBW & VBW
• Enhanced Spectrum Analyzer GUI including large marker display choice
• Choice of display options for readability – normal, black and white, night vision, high contrast
• On-screen Interference Mapping as part of the Interference Analysis option
• LTE Measurements up to 20 MHz
• 30 MHz Wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any other wideband signal
• Burst detect captures 200 μs bursts the first time, every time

9 kHz to 43 GHz

Anritsu's latest generation of handheld spectrum analyzers includes the MS2726C Spectrum Master. This represents the company's highest performance handheld spectrum analyzer from the MS272xC family. Exciting new features and options bring more value to the user over our previous generations:

• Frequency Coverage - 9 kHz to 43 GHz
• Broadband preamplifiers over the whole frequency range for increased sensitivity around 20 dB
• Three Sweep Modes – with improved Sweep Speed - up to 100 times faster
• Resolution Bandwidths from 1 Hz to 10 MHz
• New triggering choices including hysteresis, hold-off, and delay
• More zero-span capabilities including 10 MHz RBW & VBW
• Enhanced Spectrum Analyzer GUI including large marker display choice
• Choice of display options for readability – normal, black and white, night vision, high contrast
• On-screen Interference Mapping as part of the Interference Analysis option
• LTE Measurements up to 20 MHz
• 30 MHz Wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any other wideband signal
• Burst detect captures 200 μs bursts the first time, every time

VNA: 500 kHz to 1.6 GHz
SPA: 500 kHz to 1.6 GHz

S412E - Land Mobile Radio Modulation Analyzer and Signal Generator, Vector Network Analyzer, Spectrum Analyzer

The S412E is Anritsu's second generation solution for installing and maintaining public safety systems. Built on Anritsu's ninth generation handheld platform, the S412E combines a high performance receiver / spectrum analyzer with the world's most advanced handheld vector network analyzer plus a CW / P25 / NXDN / DMR signal generator with internally adjustable power from 0 dBm to –120 dBm.

100 KHz to 4 GHz Spectrum Analyzer
2 MHz to 4.0 GHz Cable & Antenna Analyzer

360 Degree View of MT8212E

The MT8212E Cell Master™ Base Station Analyzer is the smallest, lightest, and most economical solution for 2G/3G/4G, and WiMAX base station transmitter testing and ISDB-T and DVB-T/H digital broadcast field testing. It's ideal for installation and commissioning as well as for maintenance and troubleshooting. This optimal combination of base station test capabilities in one handheld device eliminates the need for several independent test instruments, thereby reducing the number of tools the user must carry and learn to operate. Whether it's sweeping cables, making power measurements, finding interference, troubleshooting base station signal quality, or verifying backhaul performance, the Cell Master MT8212E is the ideal all-in-one instrument to help keep your network up and running.

100 KHz to 6 GHz Spectrum Analyzer
2 MHz to 6.0 GHz Cable & Antenna Analyzer

The MT8213E Cell Master™ Base Station Analyzer is the smallest, lightest, and most economical solution for 2G/3G/4G, and WiMAX base station transmitter testing and ISDB-T and DVB-T/H digital broadcast field testing. It's ideal for installation and commissioning as well as for maintenance and troubleshooting. This optimal combination of base station test capabilities in one handheld device eliminates the need for several independent test instruments, thereby reducing the number of tools the user must carry and learn to operate. Whether it’s sweeping cables, making power measurements, finding interference, troubleshooting base station signal quality, or verifying backhaul performance, the Cell Master MT8213E is the ideal all-in-one instrument to help keep your network up and running.

Spectrum Analyzer: 150 KHz to 7.1 GHz
Cable & Antenna Analyzer: 400 MHz to 4.0 GHz
Vector Signal Generator: 400 MHz to 6 GHz

The BTS Master MT8221B is Anritsu's high performance base station analyzer. From the ground up it has been designed to support 4G standards and installed 2G/3G networks. The MT8221B's platform provides a 20 MHz demodulation capability to support LTE bandwidths from 1.4 to 20 MHz. It also features a 30 MHz Zero-Span IF Output for external demodulation of virtually any other wideband signal. In addition, a Vector Signal Generator option is available for comprehensive receiver testing capability with the flexibility to generate two modulated signals plus noise.

BTS Master 150 kHz to 7.1 GHz Spectrum Analyzer

The BTS Master MT8222B is Anritsu's high performance base station analyzer. From the ground up it has been designed to support 4G standards and installed 2G/3G networks. The MT8222B's platform provides a 20 MHz demodulation capability to support LTE bandwidths from 1.4 to 20 MHz. It also features a 30 MHz Zero-Span IF Output for external demodulation of virtually any other wideband signal. In addition, a Vector Signal Generator option is available for comprehensive receiver testing capability with the flexibility to generate two modulated signals plus noise.

Signal Analyzer

OUTLINE
The MS2830A is a spectrum analyzer, signal analyzer and signal generator with top-class measurement speed at medium-class price. It has best-of-class dynamic range (average noise level [DANL]: –153 dBm, third-order intermodulation distortion [TOI]: +15 dBm) and excellent ±0.3 dB (typ.) total level accuracy using unique level calibration technology.

The MS2830A supports an optional vector signal generator (VSG) and can be used as a reference signal source for tests of parts' Tx characteristics or as a signal source for tests of Rx characteristics. Installing the VSG option cuts investment costs and footprint size. The IQproducer PC software generates waveform patterns for the VSG, supporting various communication methods, including LTE FDD, LTE TDD (TD-LTE), Mobile WiMAX, etc.

10 MHz and 31.25 MHz Modulation Analysis Bandwidth options can also be installed along with various measurement software tools supporting PC-free modulation analysis of various communication systems. For example, installing the LTE Downlink/Uplink Measurement Software and LTE IQproducer LTE supports Tx characteristics/modulation analysis for LTE FDD BTS and Rx characteristics tests. Installing the LTE TDD Downlink Measurement Software and LTE TDD IQproducer supports Tx characteristics/modulation analysis for LTE TDD (TD-LTE) and Rx characteristics tests. The measurement software options support key wireless communication systems, such as Mobile WiMAX, W-CDMA/HSPA/HSPA Evolution, GSM/EDGE, TD-SCDMA, CDMA2000/1xEV-DO, as well as 3GPP LTE FDD and 3GPP LTE TDD (TD-LTE). Additionally, there are general-purpose analysis software tools for modulation analysis of multiplex TDMA systems using BPSK, QPSK, π/4 DPQPSK, 8PSK, 16QAM, 64QAM, 256QAM, 2FSK, and 4FSK modulation methods. Combining these hardware and software options in custom configurations supports the perfect measurement solution for every need.

µOTDR Module™ Series

Introducing the first handheld OTDR that does not compromise performance – the new µOTDR from Anritsu. With performance that rivals traditional OTDRs that are four times the size and more than double the price, the Network Master MT9090A µOTDR has created a new class of test instruments. It features 5 cm resolution for accurate mapping of events, deadzones of less than 1 meter (3 feet) and a dynamic range of up to 32.5dB – enough to test over 150km (90+ miles) or PON-based FTTX networks featuring up to a 1x64 split.  The MT9090A µOTDR also takes portability to a new level by being the first handheld OTDR that truly fits in the palm of your hand.

µOTDR Module™ Series

Introducing the first handheld OTDR that does not compromise performance – the new µOTDR from Anritsu. With performance that rivals traditional OTDRs that are four times the size and more than double the price, the Network Master MT9090A µOTDR has created a new class of test instruments. It features 5 cm resolution for accurate mapping of events, deadzones of less than 1 meter (3 feet) and a dynamic range of up to 37dB – enough to test over 150km (90+ miles) or PON-based FTTX networks featuring up to a 1x64 split.  The MT9090A µOTDR also takes portability to a new level by being the first handheld OTDR that truly fits in the palm of your hand.

Network Master

Purpose-Built for Technicians
Until now, the right tool just didn't exist for technicians to quickly and cost-effectively isolate network problems. Traditional, dedicated testers did the job but lacked the ability to be upgraded when new technologies were deployed. Likewise, more flexible platforms were too large, too expensive and too complicated.

The new, palm-size MT9090A modular platform from Anritsu finally addresses all of these needs. Users can interchange different modules to configure the MT9090A as an optical fault locator, general purpose OTDR, CWDM optical channel analyzer or 10/100/1000MB Ethernet tester. Operation is quite similar between modules so the user is immediately familiar with operation.

Small but Capable
Despite its small size, the MT9090A does not compromise performance or features. With a high resolution indoor/outdoor display, excellent optical performance, innovative features and expandable modular design, the MT9090A Network Master is clearly in a different class than most other "handheld testers".

ACCESS Master

Until now, installing and maintaining optical networks required technicians to carry a variety of equipment which was not only cumbersome, but also expensive. Hearing this common complaint, Anritsu engineers have developed their new line of MT9083 ACCESS Master OTDRs. The MT9083C test sets are designed to make your measurement experience simple and error-free with true one-button fault location, pass/fail classification, automated file saving and naming and even a macrobend detection feature for identifying installation issues.  They feature multiple wavelengths and options to satisfy any network testing requirement: access or metro, FTTx or LAN...all without straining your budget.

For customers installing and maintaining metro area or core networks, the ACCESS Master offers an automated fiber construction application and multiple wavelengths including specialty applications such as 1383 nm for certifying legacy fibers for CWDM upgrades.

For FTTx networks, the MT9083 series provides both optical testing for optical splits up to a 1x128, plus quality of service (QoS) verification via the IP testing option. With the IP option, continuity, download speed, throughput and frame loss of Gigabit Ethernet links can be verified up to full line rate. It also features a unique way to troubleshoot live PON based, FTTx networks without additional costly and complicated external filters.

Additional features include an integrated light source and power meter plus options to customize the unit including higher range power meters, visual fault locator (VFL) and connector inspection microscope to ensure complete network evaluation with a single tool.

OTDR Application

Reduce the Time to Install, Commission, and Maintain Fiber Spans.

As part of Anritsu's CMA5000a Multilayer Test Platform, the OTDR application reduces the time to install, commission, and maintain fiber spans via high performance hardware and easy-to-use software. Featuring support for a multitude of single mode and multimode wavelengths, up to 50 dB of dynamic range, and deadzones as small as 1 meter, the OTDR application is the ideal solution for testing long-haul backbone networks, metropolitan optical networks (MONs), and FTTP deployments that incorporate passive optical networks (PONs).

The CMA5000a reduces the cost of measurement through ultra-fast data acquisition. Up to 80% of the dynamic range is achieved in under 30 seconds, saving valuable time and expense when compared to other solutions that require three minutes to complete their tests. In addition, real time updates of 1/10 second provide quick information for easier connector and splice optimization.

The CMA5000a OTDR Application provides unparalled ease of use for both the novice and the fiber expert through dedicated test modes that simplify and automate tests for any application from fiber reel validation measurements to long-haul, metro, or PON applications. In addition, tri-wavelength OTDR modules simplify multiple band fiber characterization covering O-, S-, C-, and L-band, while adding Loss Test Set and Visual Fault Locator (VFL) functions to the OTDR module further reduce inventory and enhance portability.

The CMA5000a OTDR application, when combined with the Polarization Mode Dispersion, Chromatic Dispersion, ORL, and Video Inspection Probe applications, becomes the most comprehensive fiber characterization tool available.

CD-OTDR Modules

The field portable CMA5000a OTDR/Chromatic Dispersion application is a dedicated module that combines the advanced capabilities of Anritsu’s OTDR technology with Anritsu’s experience in Chromatic Dispersion. The CMA5000a OTDR/CD measurement system is based upon the industry accepted time-of-flight measurement method (FOTP-168) and uses multiple wavelengths to increase the accuracy of the measurement. Only a single fiber is needed to test dispersion slope and zero-dispersion wavelength as well as traditional OTDR characteristics of loss, length and attenuation on all single mode fiber types. This provides carriers and service providers increased revenue through optimized network bandwidth, while improving efficiency and reducing operational expenses through proper CD mitigation and compensation techniques.

PMD Application

Before any network upgrades are performed, PMD should be tested to see what the physical limitations are. The CMA5000a PMD (Polarization Mode Dispersion) module is designed to assess the capability of each fiber in the network and verify which transmission rates any given fiber can support. The CMA5000a PMD module can also identify fibers that are capable of the highest transmission rates, allowing service providers to assign these to key customers or the most demanding communications.

Optical Loss Test Set / Optical Power Meter

Fast and easy-to-use, Anritsu's CMA50 Loss Test Sets are designed for both attenuation and power throughput measurements on fiber optic links. Anritsu engineers have used real life field experience to develop a product that produces the results needed in a variety of applications. Units are offered with commonly calibrated wavelengths and connector options to meet any testing requirement from FTTx networks to long haul telephony links to multimode LAN, and CATV.

Optical Light Source / Optical Power Meter

Light Source: The CMA5 Series Light Sources provide an economical and stable laser source for use in point-to-point attenuation measurement. They feature a rugged design, built to withstand the difficult testing environment of fiber optic cable installation and maintenance.

The CMA5 Light Sources are ideal for testing single-mode and multimode fibers as they are offered in a variety of wavelengths to meet testing applications from datacom with 850 and 1300nm to WDM with 1310/1550 nm wavelength.

Optical Channel Analyzer Module

Cost-Effective, Small, Rugged and Easy-To-Use Test Equipment for Installation, Maintenance and Troubleshooting of CWDM Access Networks
The new MU909020A/Optical channel Analyzer module is a field modular device designed to measure and monitor power and wavelength over the 18 CWDM channels. It is a cost-effective alternative to more complex OSA for the emerging CWDM market, providing fast and reliable measurements in every environment. The small, lightweight and rugged handheld design makes this the ideal tool for field technicians tasked with installation, maintenance and troubleshooting of CWDM access networks.

Dedicated Tool for CWDM Applications
The MU909020A Optical Channel Analyzer is purpose built for testing CWDM channels in the field. It provides an overview of the power levels and wavelengths of all 18 CWDM channels at a glance. In addition, PASS/FAIL thresholds are stored for all parameters and configurations defined in ITU-T G.695 recommendation, allowing technicians to easily assess the network condition. It also enables long-term characterizations with several drift functions. With its software interface focused exclusively on the features needed, it is easy to use for any skill level, significantly decreasing training expenses.

Fast Measurement in the Field
The MU909020A is ready for measurement in about 15 seconds, so productive work can start immediately. With no moving parts, the MU909020A is faster than any OSA, providing quick troubleshooting of a CWDM network. Besides, measurement results can easily be added to test reports, thanks to the ability to save screen shots, to store data in the internal memory or on external USB memory devices, and to easily transfer files into a PC. With its lightweight design and user friendly dimensions, the Optical Channel Analyzer is perfect for the outside plant environment and can easily be managed with one hand.  Its high resolution, full color, 4.3 inch wide screen display is the perfect format for viewing results. It also provides excellent readability both indoors and outdoors. And since AC power is not always available where you need it, especially at fiber pedestals, the MT9090A typically provides 4 hours of testing on battery. The small, lightweight and rugged handheld design makes this the ideal tool for field technicians tasked with installation, maintenance and troubleshooting of CWDM access networks.

Modular Design
The MT9090A features a modular design allowing modules to be easily changed in the field.  Users can interchange different Optical Channel Analyzer modules or perform other optical network testing such as verification of drop cable installation with the available MU909011A Fault Locator module.  Operation of all the modules is quite similar, so the user will immediately be familiar with their operation.

Optical Fault Locator Module

Purpose-Built for Short Fibre Testing

Until now, the right tool just didn't exist for cost effectively testing short fibres. Handheld OTDRs and Fault Locators lacked the resolution and specifications to find issues in such short spans while mini-OTDRs were too large, too expensive and too complicated.

The new MU909011A OTDR Module for the MT9090A from Anritsu finally addresses this need by providing all of the features and performance required for installation and maintenance of short fibres in a compact, modular test set. The MT9090A represents an unmatched level of value and ease of use, while not compromising performance. Data sampling of five centimeters and deadzones of less than one meter, ensure accurate and complete fibre evaluation while a simple testing sequence requires only one key press to initiate - allowing anyone to make error-free measurements.

The MT9090A represents a new era in drop cable and premise testing. Its ease of use, low price, high-resolution and size makes this the perfect product for "last mile" testing.
