Antennas: Directional, GPS, Mag Mount Broadband and Portable



Adapters |  Antennas |  AttenuatorsCalibration Components |  Detectors |  Test Port Cables  |  Miscellaneous  |  Batteries



Directional Antennas





Part Number Description
2000-1411 Yagi Antenna 2000-1411-R Portable Yagi Antenna, 10 dBd, N(f), 822 to 900 MHz
2000-1412 Yagi Antenna 2000-1412-R Portable Yagi Antenna, 10 dBd, N(f), 885 to 975 MHz
2000-1413 Yagi Antenna 2000-1413-R Portable Yagi Antenna, 10 dBd, N(f), 1.71 to 1.88 GHz
2000-1414-R 2000-1414-R Portable Yagi Antenna, 9.3 dBd, N(f), 1.85 to 1.99 GHz
2000-1415 Yagi Antenna 2000-1415-R Portable Yagi Antenna, 12 dBd, N(f), 2.4 to 2.5 GHz
2000-1416 Yagi Antenna 2000-1416-R Portable Yagi Antenna, 10 dBd, N(f), 1.92 to 2.17 GHz
2000-1617 2000-1617 Antenna, 600 MHz to 21 GHz, directional

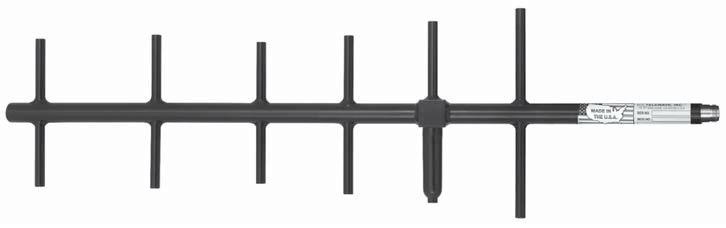

2000-1659-R 2000-1659-R Portable Yagi Antenna, 698 – 787 MHz, N(f), 8 dBd
2000-1416 Yagi Antenna 2000-1660-R Portable Yagi Antenna, 1425 -1535 MHz, N(f), 12.2 dBd
2000-1677 Log Periodic Directional Antenna 2000-1677-R Log Periodic Directional Antenna
300 MHz - 3000 MHz, SMA(m), 50 ohm, 3 meter cable (9.8 ft)
Gain: 6 dBi @ 950 MHz
  2000-1726-R Portable Yagi Antenna, 12 dBd, N(f), 2500 to 2700 MHz
  2000-1747-R Portable Log Periodic Antenna, 5.1 dBi, typical, N(f), 300 to 5000 MHz
  2000-1748-R Portable Log Periodic Antenna, 6 dBi, typical, N(f),  1 to 18 GHz



GPS Antennas



  Part Number Description
GPS Antenna 2000-1410   Magnet Mount GPS Antenna with 15 foot cable and reverse polarity BNC plug
GPS Antenna 2000-1528-R   Magnet Mount GPS Antenna (active 3-5V) with SMA(m) connector and 4.6 m (15 foot)
  2000-1652-R   Magnet Mount GPS Antenna (active 3-5V) with SMA(m) connector and 1 foot cable



Mag Mount Broadband Antennas

 Part NumberDescription
2000-1645-R 694 MHz to 894 MHz 3 dBi peak gain, 1700 MHz to 2700 MHz 3 dBi peak gain, N(m), 50 Ω, 10 ft
2000-1646-R 750 MHz to 1250 MHz 3 dBi peak gain, 1650 MHz to 2000 MHz 5 dBi peak gain, 2100 MHz to 2700 MHz 3 dBi peak gain, N(m), 50 Ω, 10 ft
2000-1647-R Cable 1: 698 MHz to 1200 MHz 2 dBi peak gain, 1700 MHz to 2700 MHz 5 dBi peak gain, N(m), 50 Ω, 10 ft Cable 2: 3000 MHz to 6000 MHz 5 dBi peak gain, N(m), 50 Ω, 10 ft Cable 3: GPS 26 dB gain, SMA(m), 50 Ω, 10 ft
2000-1648-R 1700 MHz to 6000 MHz 3 dBi peak gain,N(m), 50 Ω, 10 ft



Portable Antennas



  Part Number Description
2000-1030 Portable Antenna, 50 ohm, SMA (m), 1.71-1.88 GHz
2000-1031 Portable Antenna, 50 ohm, SMA (m), 1.85-1.99 MHz
2000-1032 Portable Antenna, 50 ohm, SMA (m), 2.4-2.5 GHz
2000-1035 Portable Antenna, 50 ohm, SMA (m), 896-941 MHz
2000-1200 Portable Antenna, 50 ohm, SMA (m), 806-869 MHz
2000-1361 Portable Antenna, 50 ohm, SMA (m), 5725-5825 MHz
2000-1473 Portable Antenna, 50 ohm, SMA (m), 870-960 MHz
2000-1474 Portable Antenna, 50 ohm, SMA (m), 2.41-2.5 GHz
2000-1475 Portable Antenna, 50 ohm, SMA (m), 1920-1980, 2.11 to 2.17 GHz
  2000-1751-R Portable Antenna, 50 ohm, 2 dBi, typical, SMA (m), LTE Dipole, 698-960/1710-2170/2500-2700 MHz



Antenna Kit

  Part Number Description
Antenna Kit 61532 Includes: 2000-1030, 2000-1031, 2000-1032, 2000-1035, 2000-1200 and 2000-1361
